SAF77減速機加電機重量：

SAF77減速機加0.55KW電機重量68KG，SAF77減速機加0.75KW電機重量69KG，SAF77減速機加1.1KW電機重量73KG，SAF77減速機加1.5KW電機重量76KG，SAF77減速機加2.2KW電機重量85KG，SAF77減速機加3KW電機重量88KG，SAF77減速機加4KW電機重量99KG，SAF77減速機加5.5KW電機重量113KG，SAF77減速機加7.5KW電機重量126KG。自鎖減速機

SAF77減速機加油量：可加齒輪潤滑油

SAF77減速機M4安裝形式加5.8L，SAF77減速機M3安裝形式加3.6-5L，SAF77減速機M2安裝形式加3.9L，SAF77減速機M1安裝形式加1.8L，SAF77減速機M5安裝形式加4.5L，SAF77減速機M6安裝形式加4.5L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

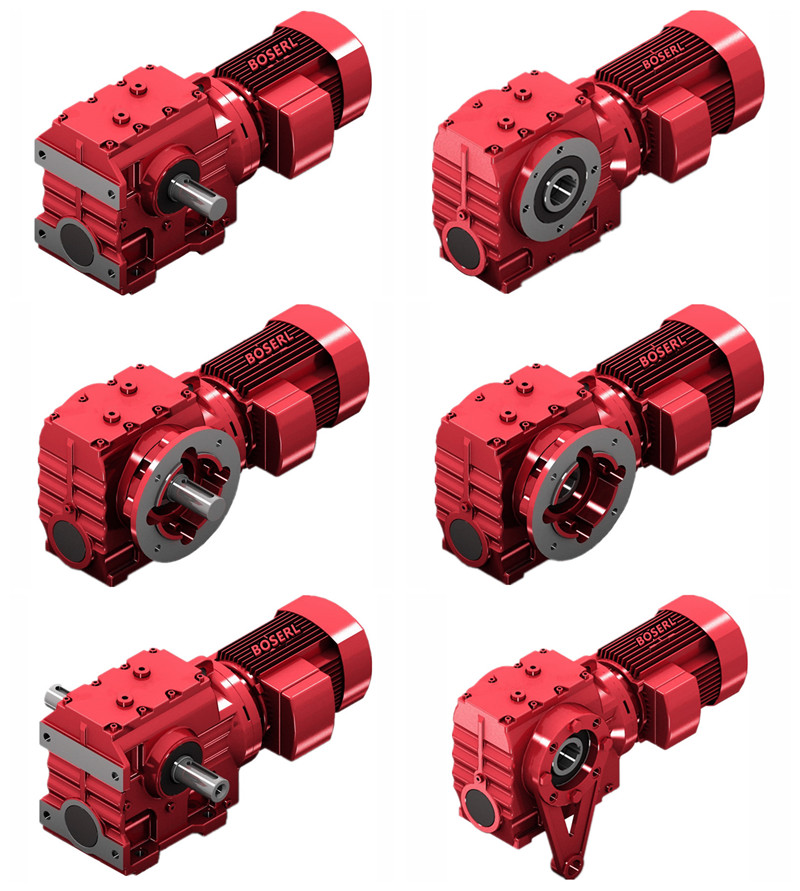

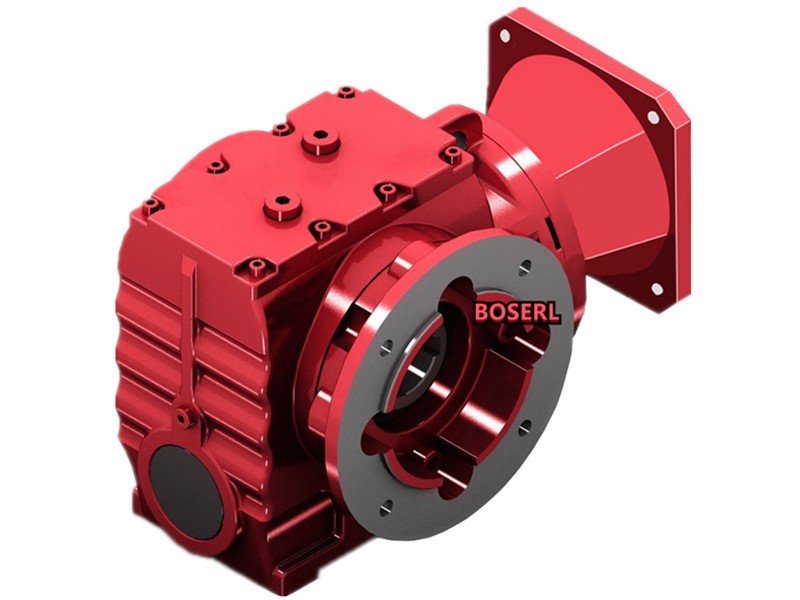

SAF77減速機實物圖：圖一為SAF77立式通孔斜齒輪蝸輪蝸桿減速電機，圖二S77加自鎖功能底腳斜齒輪蝸輪蝸桿減速電機，圖三為SF77具有自鎖功能立式斜齒輪蝸輪蝸桿減速電機，圖四為SA77臥式中孔軸斜齒輪減速機。

SAF77減速機型號表示方法：

SAF77減速機型號結構SAF77-B3KW-4P-減速比-安裝形式-接線盒位置。

SAF77減速機性能參數表結構說明：Frame size代表基座規格，K代表服務系數，T扭力臂，E編碼器，HF手動釋放裝置加自鎖功能，TF電機熱保護裝置，SAF77，S77，SF77，SA77減速機機座號，HR手動釋放裝置，N代表徑向負荷，1/min代表輸出轉數。

SAF77減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向為:從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

SAF77減速機參數：

SAF77減速機輸出扭矩680N.m，705N.m，710N.m，720N.m，725N.m，930N.m，980N.m，990N.m，1020N.m，1040N.m，1050N.m，1070N.m，1090N.m，1100N.m，1140N.m，1170N.m，1200N.m，1210N.m，1240N.m，1260N.m，1270N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

SAF77減速機減速比256.47比，225.26比，214比，189.09比，161.6比，148.15比，130比，123.3比，107.83比，97.14比，85.22比，75.2比，75.09比，71.33比，66.67比，63.03比，56.92比，53.87比，49.38比，43.33比，41.07比，35.94比，32.38比，28.41比，25.07比，22.89比，22.22比，20.99比，18.97比，18.42比，17.45比，15.28比，13.76比，12.07比，10.65比，9.44比，8.06比

SAF77減速機輸出轉數5.50轉，6.2轉，6.5轉，7.4轉，8.7轉，9.4轉，11轉，13轉，14轉，16轉，19轉，20轉，21轉，22轉，25轉，26轉，28轉，32轉，34轉，39轉，43轉，49轉，56轉，61轉，63轉，67轉，74轉，76轉，80轉，92轉，102轉，116轉，131轉，148轉，174轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為S系列減速機的輸入）

SAF77減速機電機可加三相，直流，變頻，剎車，防爆，伺服，交流，單相電機SAF77加0.55KW，SAF77加0.75KW，SAF77加1.1KW，SAF77加1.5KW，SAF77加2.2KW，SAF77加3KW，SAF77加4KW，SAF77加5.5KW，SAF77加7.5KW。

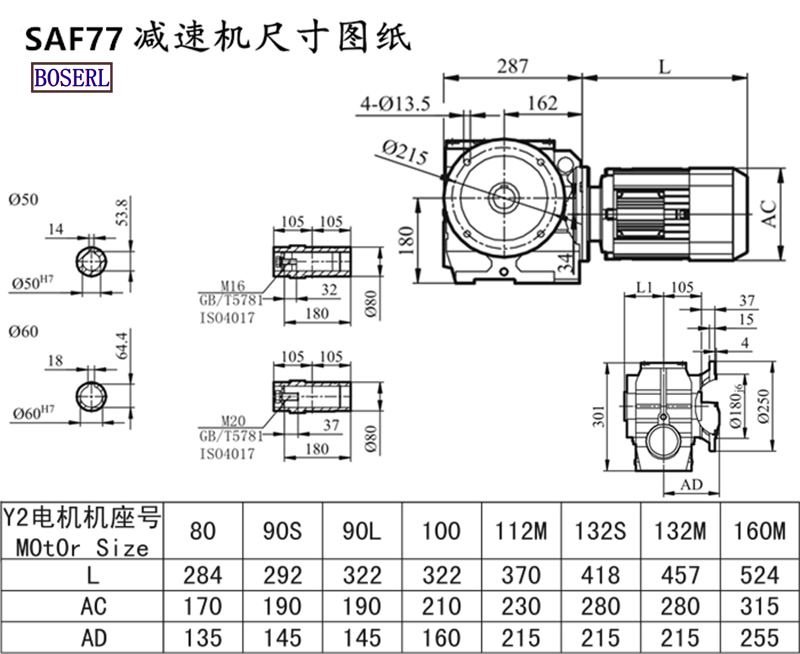

SAF77減速機外觀尺寸：輸出孔直徑Φ50+鍵3.8（可定做），高301*寬251（帶輸出法蘭）*長287

SAF77減速機型號：SAF77AQA80,SAF77AQA100,SAF77AQA115,SAF77AQA140,SAF77AQA160,SAF77AQA190,SAF77AQH80,SAF77AQH100,SAF77AQH115,SAF77AQH140,SAF77AQH160,SAF77AQH190,JRTSAF77-Y0.25KW,JRTSAF77-Y0.37KW,JRTSAF77-Y0.55KW,JRTSAF77-Y0.75KW,JRTSAF77-Y1.1KW,JRTSAF77-Y1.5KW,JRTSAF77-Y100M4,JRTSAF77-Y112M4,JRTSAF77-Y132M4,JRTSAF77-Y2.2KW,JRTSAF77-Y3KW,JRTSAF77-Y4KW,JRTSAF77-Y5.5KW,JRTSAF77-Y7.5KW,JRTSAF77-Y71M4,JRTSAF77-Y80M4,JRTSAF77-Y90M4,JRTSAF77-YEJ100M4,JRTSAF77-YEJ112M4,JRTSAF77-YEJ132M4,JRTSAF77-YEJ71M4,JRTSAF77-YEJ80M4,JRTSAF77-YEJ90M4,JRTSAF77-YS100M4,JRTSAF77-YS112M4,JRTSAF77-YS132M4,JRTSAF77-YS71M4,JRTSAF77-YS80M4,JRTSAF77-YS90M4,JRTSAF77-YVP100M4,JRTSAF77-YVP112M4,JRTSAF77-YVP132M4,JRTSAF77-YVP71M4,JRTSAF77-YVP80M4,JRTSAF77-YVP90M4,JRTSAF77-YVPEJ100M4,JRTSAF77-YVPEJ112M4,JRTSAF77-YVPEJ132M4,JRTSAF77-YVPEJ71M4,JRTSAF77-YVPEJ80M4,JRTSAF77-YVPEJ90M4,EWSAF77-Y0.25KW,EWSAF77-Y0.37KW,EWSAF77-Y0.55KW,EWSAF77-Y0.75KW,EWSAF77-Y1.1KW,EWSAF77-Y1.5KW,EWSAF77-Y100M4,EWSAF77-Y112M4,EWSAF77-Y132M4,EWSAF77-Y2.2KW,EWSAF77-Y3KW,EWSAF77-Y4KW,EWSAF77-Y5.5KW,EWSAF77-Y7.5KW,EWSAF77-Y71M4,EWSAF77-Y80M4,EWSAF77-Y90M4,EWSAF77-YEJ100M4,EWSAF77-YEJ112M4,EWSAF77-YEJ132M4,EWSAF77-YEJ71M4,EWSAF77-YEJ80M4,EWSAF77-YEJ90M4,EWSAF77-YS100M4,EWSAF77-YS112M4,EWSAF77-YS132M4,EWSAF77-YS71M4,EWSAF77-YS80M4,EWSAF77-YS90M4,EWSAF77-YVP100M4,EWSAF77-YVP112M4,EWSAF77-YVP132M4,EWSAF77-YVP71M4,EWSAF77-YVP80M4,EWSAF77-YVP90M4,EWSAF77-YVPEJ100M4,EWSAF77-YVPEJ112M4,EWSAF77-YVPEJ132M4,EWSAF77-YVPEJ71M4,EWSAF77-YVPEJ80M4,EWSAF77-YVPEJ90M4,SLSAF77-Y0.25KW,SLSAF77-Y0.37KW,SLSAF77-Y0.55KW,SLSAF77-Y0.75KW,SLSAF77-Y1.1KW,SLSAF77-Y1.5KW,SLSAF77-Y100M4,SLSAF77-Y112M4,SLSAF77-Y132M4,SLSAF77-Y2.2KW,SLSAF77-Y3KW,SLSAF77-Y4KW,SLSAF77-Y5.5KW,SLSAF77-Y7.5KW,SLSAF77-Y71M4,SLSAF77-Y80M4,SLSAF77-Y90M4,SLSAF77-YEJ100M4,SLSAF77-YEJ112M4,SLSAF77-YEJ132M4,SLSAF77-YEJ71M4,SLSAF77-YEJ80M4,SLSAF77-YEJ90M4,SLSAF77-YS100M4,SLSAF77-YS112M4,SLSAF77-YS132M4,SLSAF77-YS71M4,SLSAF77-YS80M4,SLSAF77-YS90M4,SLSAF77-YVP100M4,SLSAF77-YVP112M4,SLSAF77-YVP132M4,SLSAF77-YVP71M4,SLSAF77-YVP80M4,SLSAF77-YVP90M4,SLSAF77-YVPEJ100M4,SLSAF77-YVPEJ112M4,SLSAF77-YVPEJ132M4,SLSAF77-YVPEJ71M4,SLSAF77-YVPEJ80M4,SLSAF77-YVPEJ90M4,DSZSAF77-Y0.25KW,DSZSAF77-Y0.37KW,DSZSAF77-Y0.55KW,DSZSAF77-Y0.75KW,DSZSAF77-Y1.1KW,DSZSAF77-Y1.5KW,DSZSAF77-Y100M4,DSZSAF77-Y112M4,DSZSAF77-Y132M4,DSZSAF77-Y2.2KW,DSZSAF77-Y3KW,DSZSAF77-Y4KW,DSZSAF77-Y5.5KW,DSZSAF77-Y7.5KW,DSZSAF77-Y71M4,DSZSAF77-Y80M4,DSZSAF77-Y90M4,DSZSAF77-YEJ100M4,DSZSAF77-YEJ112M4,DSZSAF77-YEJ132M4,DSZSAF77-YEJ71M4,DSZSAF77-YEJ80M4,DSZSAF77-YEJ90M4,DSZSAF77-YS100M4,DSZSAF77-YS112M4,DSZSAF77-YS132M4,DSZSAF77-YS71M4,DSZSAF77-YS80M4,DSZSAF77-YS90M4,DSZSAF77-YVP100M4,DSZSAF77-YVP112M4,DSZSAF77-YVP132M4,DSZSAF77-YVP71M4,DSZSAF77-YVP80M4,DSZSAF77-YVP90M4,DSZSAF77-YVPEJ100M4,DSZSAF77-YVPEJ112M4,DSZSAF77-YVPEJ132M4,DSZSAF77-YVPEJ71M4,DSZSAF77-YVPEJ80M4,DSZSAF77-YVPEJ90M4,BSAF77-Y0.25KW,BSAF77-Y0.37KW,BSAF77-Y0.55KW,BSAF77-Y0.75KW,BSAF77-Y1.1KW,BSAF77-Y1.5KW,BSAF77-Y100M4,BSAF77-Y112M4,BSAF77-Y132M4,BSAF77-Y2.2KW,BSAF77-Y3KW,BSAF77-Y4KW,BSAF77-Y5.5KW,BSAF77-Y7.5KW,BSAF77-Y71M4,BSAF77-Y80M4,BSAF77-Y90M4,BSAF77-YEJ100M4,BSAF77-YEJ112M4,BSAF77-YEJ132M4,BSAF77-YEJ71M4,BSAF77-YEJ80M4,BSAF77-YEJ90M4,BSAF77-YS100M4,BSAF77-YS112M4,BSAF77-YS132M4,BSAF77-YS71M4,BSAF77-YS80M4,BSAF77-YS90M4,BSAF77-YVP100M4,BSAF77-YVP112M4,BSAF77-YVP132M4,BSAF77-YVP71M4,BSAF77-YVP80M4,BSAF77-YVP90M4,BSAF77-YVPEJ100M4,BSAF77-YVPEJ112M4,BSAF77-YVPEJ132M4,BSAF77-YVPEJ71M4,BSAF77-YVPEJ80M4,BSAF77-YVPEJ90M4,GSAF77-Y0.25KW,GSAF77-Y0.37KW,GSAF77-Y0.55KW,GSAF77-Y0.75KW,GSAF77-Y1.1KW,GSAF77-Y1.5KW,GSAF77-Y100M4,GSAF77-Y112M4,GSAF77-Y132M4,GSAF77-Y2.2KW,GSAF77-Y3KW,GSAF77-Y4KW,GSAF77-Y5.5KW,GSAF77-Y7.5KW,GSAF77-Y71M4,GSAF77-Y80M4,GSAF77-Y90M4,GSAF77-YEJ100M4,GSAF77-YEJ112M4,GSAF77-YEJ132M4,GSAF77-YEJ71M4,GSAF77-YEJ80M4,GSAF77-YEJ90M4,GSAF77-YS100M4,GSAF77-YS112M4,GSAF77-YS132M4,GSAF77-YS71M4,GSAF77-YS80M4,GSAF77-YS90M4,GSAF77-YVP100M4,GSAF77-YVP112M4,GSAF77-YVP132M4,GSAF77-YVP71M4,GSAF77-YVP80M4,GSAF77-YVP90M4,GSAF77-YVPEJ100M4,GSAF77-YVPEJ112M4,GSAF77-YVPEJ132M4,GSAF77-YVPEJ71M4,GSAF77-YVPEJ80M4,GSAF77-YVPEJ90M4,SCAF77-Y0.25KW,SCAF77-Y0.37KW,SCAF77-Y0.55KW,SCAF77-Y0.75KW,SCAF77-Y1.1KW,SCAF77-Y1.5KW,SCAF77-Y100M4,SCAF77-Y112M4,SCAF77-Y132M4,SCAF77-Y2.2KW,SCAF77-Y3KW,SCAF77-Y4KW,SCAF77-Y5.5KW,SCAF77-Y7.5KW,SCAF77-Y71M4,SCAF77-Y80M4,SCAF77-Y90M4,SCAF77-YEJ100M4,SCAF77-YEJ112M4,SCAF77-YEJ132M4,SCAF77-YEJ71M4,SCAF77-YEJ80M4,SCAF77-YEJ90M4,SCAF77-YS100M4,SCAF77-YS112M4,SCAF77-YS132M4,SCAF77-YS71M4,SCAF77-YS80M4,SCAF77-YS90M4,SCAF77-YVP100M4,SCAF77-YVP112M4,SCAF77-YVP132M4,SCAF77-YVP71M4,SCAF77-YVP80M4,SCAF77-YVP90M4,SCAF77-YVPEJ100M4,SCAF77-YVPEJ112M4,SCAF77-YVPEJ132M4,SCAF77-YVPEJ71M4,SCAF77-YVPEJ80M4,SCAF77-YVPEJ90M4,MTNAF77-Y0.25KW,MTNAF77-Y0.37KW,MTNAF77-Y0.55KW,MTNAF77-Y0.75KW,MTNAF77-Y1.1KW,MTNAF77-Y1.5KW,MTNAF77-Y100M4,MTNAF77-Y112M4,MTNAF77-Y132M4,MTNAF77-Y2.2KW,MTNAF77-Y3KW,MTNAF77-Y4KW,MTNAF77-Y5.5KW,MTNAF77-Y7.5KW,MTNAF77-Y71M4,MTNAF77-Y80M4,MTNAF77-Y90M4,MTNAF77-YEJ100M4,MTNAF77-YEJ112M4,MTNAF77-YEJ132M4,MTNAF77-YEJ71M4,MTNAF77-YEJ80M4,MTNAF77-YEJ90M4,MTNAF77-YS100M4,MTNAF77-YS112M4,MTNAF77-YS132M4,MTNAF77-YS71M4,MTNAF77-YS80M4,MTNAF77-YS90M4,MTNAF77-YVP100M4,MTNAF77-YVP112M4,MTNAF77-YVP132M4,MTNAF77-YVP71M4,MTNAF77-YVP80M4,MTNAF77-YVP90M4,MTNAF77-YVPEJ100M4,MTNAF77-YVPEJ112M4,MTNAF77-YVPEJ132M4,MTNAF77-YVPEJ71M4,MTNAF77-YVPEJ80M4,MTNAF77-YVPEJ90M4,WXSAF77-WSS0.25KW,WXSAF77-WSS0.37KW,WXSAF77-WSS0.55KW,WXSAF77-WSS0.75KW,WXSAF77-WSS1.1KW,WXSAF77-WSS1.5KW,WXSAF77-WSS100M4,WXSAF77-WSS112M4,WXSAF77-WSS132M4,WXSAF77-WSS2.2KW,WXSAF77-WSS3KW,WXSAF77-WSS4KW,WXSAF77-WSS5.5KW,WXSAF77-WSS7.5KW,WXSAF77-WSS71M4,WXSAF77-WSS80M4,WXSAF77-WSS90M4,WXSAF77-WSSB100M4,WXSAF77-WSSB112M4,WXSAF77-WSSB132M4,WXSAF77-WSSB71M4,WXSAF77-WSSB80M4,WXSAF77-WSSB90M4,WXSAF77-WSSVP100M4,WXSAF77-WSSVP112M4,WXSAF77-WSSVP132M4,WXSAF77-WSSVP71M4,WXSAF77-WSSVP80M4,WXSAF77-WSSVP90M4,WXSAF77-WSSVPB100M4,WXSAF77-WSSVPB112M4,WXSAF77-WSSVPB132M4,WXSAF77-WSSVPB71M4,WXSAF77-WSSVPB80M4,WXSAF77-WSSVPB90M4。伺服電機渦輪渦桿減速機

SAF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.wwindo.com/product/list-safxiliejiansuji-cn.html

推薦類似型號：S77減速機
