RXF87減速機加電機重量

RXF87減速機加3KW電機重量75kg,RXF87減速機加4KW電機重量86kg,RXF87減速機加5.5KW電機重量100kg,RXF87減速機加7.5KW電機重量113kg,RXF87減速機加11KW電機重量155kg,RXF87減速機加15KW電機重量175kg,RXF87減速機加18.5KW電機重量212kg,RXF87減速機加22KW電機重量225kg。齒輪減速機

RXF87減速機加油量：可加齒輪潤滑油

RXF87減速機M4安裝加3.95L，RXF87減速機M3安裝加4.9L，RXF87減速機M2安裝加1.95L，RXF87減速機M1安裝加1.6L，RXF87減速機M5安裝加2.9L，RXF87減速機M6安裝加2.9L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。

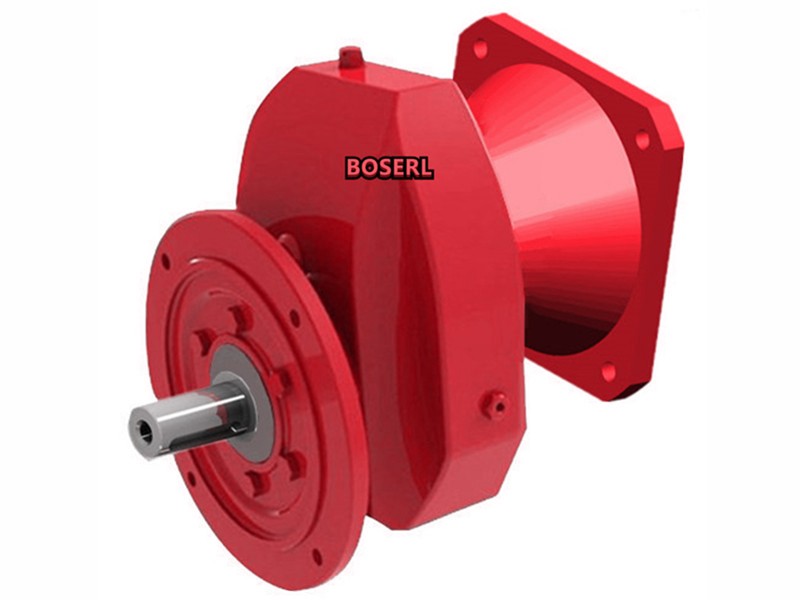

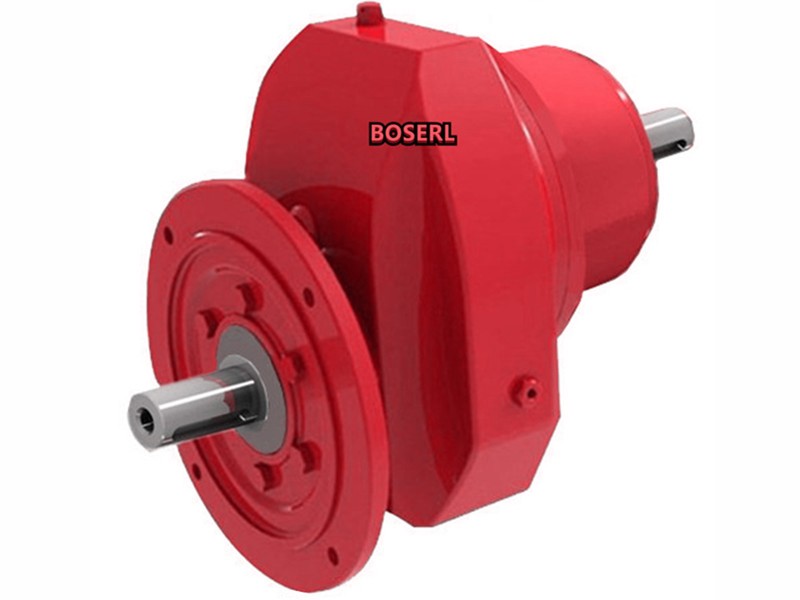

RXF87減速機實物圖：圖一為RXF87減速機不同心立式法蘭安裝，圖二為R87底腳安裝斜齒輪減速機，圖三為RF87法蘭立式安裝斜齒輪減速機，圖四為RX87減速機不同心臥式底腳安裝。

RXF87減速機型號表示方法：

RXF87減速機型號結構RXF87-B11KW-4P-減速比-安裝方式-接線盒位置。同軸減速機

RXF87減速機性能參數表結構說明：i代表減速比，Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入帶置。

RXF87減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。硬齒面減速機

RXF87減速機參數：

RXF87減速機負載扭矩49Nm,139Nm,140Nm,192Nm,225Nm,250Nm,290Nm,290Nm,305Nm,315Nm,355Nm,385Nm,405Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

RXF87減速機電機可帶交流、伺服、剎車、變頻、防爆、直流、三相、單相電機RXF87加3KW,RXF87加4KW,RXF87加5.5KW,RXF87加7.5KW,RXF87加11KW,RXF87加15KW,RXF87加18.5KW,RXF87加22KW。

RXF87減速機輸出轉速162rpm,183rpm,194rpm,217rpm,252rpm,276rpm,311rpm,370rpm,402rpm,453rpm,507rpm,565rpm,651rpm,725rpm,875rpm,1005rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RXF87減速機減速比1:1.39,1:1.6,1:1.93,1:2.15,1:2.48,1:2.76,1:3.09,1:3.48,1:3.78,1:4.5,1:5.07,1:5.56,1:6.45,1:7.2,1:7.63,1:8.65

RXF87減速機外觀尺寸：輸出軸直徑Φ40+鍵3（可定做），高332*寬272*長269（帶輸出軸）

RXF87減速機型號：RXF87AQA80,RXF87AQA100,RXF87AQA115,RXF87AQA140,RXF87AQA160,RXF87AQA190,RXF87AQH80,RXF87AQH100,RXF87AQH115,RXF87AQH140,RXF87AQH160,RXF87AQH190,JRTRXF87-Y0.37KW,JRTRXF87-Y0.55KW,JRTRXF87-Y0.75KW,JRTRXF87-Y1.1KW,JRTRXF87-Y1.5KW,JRTRXF87-Y100M4,JRTRXF87-Y112M4,JRTRXF87-Y11KW,JRTRXF87-Y132M4,JRTRXF87-Y15KW,JRTRXF87-Y160M4,JRTRXF87-Y18.5KW,JRTRXF87-Y180M4,JRTRXF87-Y2.2KW,JRTRXF87-Y200M4,JRTRXF87-Y22KW,JRTRXF87-Y30KW,JRTRXF87-Y3KW,JRTRXF87-Y4KW,JRTRXF87-Y5.5KW,JRTRXF87-Y7.5KW,JRTRXF87-Y71M4,JRTRXF87-Y80M4,JRTRXF87-Y90M4,JRTRXF87-YEJ100M4,JRTRXF87-YEJ112M4,JRTRXF87-YEJ132M4,JRTRXF87-YEJ160M4,JRTRXF87-YEJ180M4,JRTRXF87-YEJ200M4,JRTRXF87-YEJ71M4,JRTRXF87-YEJ80M4,JRTRXF87-YEJ90M4,JRTRXF87-YS100M4,JRTRXF87-YS112M4,JRTRXF87-YS132M4,JRTRXF87-YS160M4,JRTRXF87-YS180M4,JRTRXF87-YS200M4,JRTRXF87-YS71M4,JRTRXF87-YS80M4,JRTRXF87-YS90M4,JRTRXF87-YVP100M4,JRTRXF87-YVP112M4,JRTRXF87-YVP132M4,JRTRXF87-YVP160M4,JRTRXF87-YVP180M4,JRTRXF87-YVP200M4,JRTRXF87-YVP71M4,JRTRXF87-YVP80M4,JRTRXF87-YVP90M4,JRTRXF87-YVPEJ100M4,JRTRXF87-YVPEJ112M4,JRTRXF87-YVPEJ132M4,JRTRXF87-YVPEJ160M4,JRTRXF87-YVPEJ180M4,JRTRXF87-YVPEJ200M4,JRTRXF87-YVPEJ71M4,JRTRXF87-YVPEJ80M4,JRTRXF87-YVPEJ90M4,EWRXF87-Y0.37KW,EWRXF87-Y0.55KW,EWRXF87-Y0.75KW,EWRXF87-Y1.1KW,EWRXF87-Y1.5KW,EWRXF87-Y100M4,EWRXF87-Y112M4,EWRXF87-Y11KW,EWRXF87-Y132M4,EWRXF87-Y15KW,EWRXF87-Y160M4,EWRXF87-Y18.5KW,EWRXF87-Y180M4,EWRXF87-Y2.2KW,EWRXF87-Y200M4,EWRXF87-Y22KW,EWRXF87-Y30KW,EWRXF87-Y3KW,EWRXF87-Y4KW,EWRXF87-Y5.5KW,EWRXF87-Y7.5KW,EWRXF87-Y71M4,EWRXF87-Y80M4,EWRXF87-Y90M4,EWRXF87-YEJ100M4,EWRXF87-YEJ112M4,EWRXF87-YEJ132M4,EWRXF87-YEJ160M4,EWRXF87-YEJ180M4,EWRXF87-YEJ200M4,EWRXF87-YEJ71M4,EWRXF87-YEJ80M4,EWRXF87-YEJ90M4,EWRXF87-YS100M4,EWRXF87-YS112M4,EWRXF87-YS132M4,EWRXF87-YS160M4,EWRXF87-YS180M4,EWRXF87-YS200M4,EWRXF87-YS71M4,EWRXF87-YS80M4,EWRXF87-YS90M4,EWRXF87-YVP100M4,EWRXF87-YVP112M4,EWRXF87-YVP132M4,EWRXF87-YVP160M4,EWRXF87-YVP180M4,EWRXF87-YVP200M4,EWRXF87-YVP71M4,EWRXF87-YVP80M4,EWRXF87-YVP90M4,EWRXF87-YVPEJ100M4,EWRXF87-YVPEJ112M4,EWRXF87-YVPEJ132M4,EWRXF87-YVPEJ160M4,EWRXF87-YVPEJ180M4,EWRXF87-YVPEJ200M4,EWRXF87-YVPEJ71M4,EWRXF87-YVPEJ80M4,EWRXF87-YVPEJ90M4,SLRXF87-Y0.37KW,SLRXF87-Y0.55KW,SLRXF87-Y0.75KW,SLRXF87-Y1.1KW,SLRXF87-Y1.5KW,SLRXF87-Y100M4,SLRXF87-Y112M4,SLRXF87-Y11KW,SLRXF87-Y132M4,SLRXF87-Y15KW,SLRXF87-Y160M4,SLRXF87-Y18.5KW,SLRXF87-Y180M4,SLRXF87-Y2.2KW,SLRXF87-Y200M4,SLRXF87-Y22KW,SLRXF87-Y30KW,SLRXF87-Y3KW,SLRXF87-Y4KW,SLRXF87-Y5.5KW,SLRXF87-Y7.5KW,SLRXF87-Y71M4,SLRXF87-Y80M4,SLRXF87-Y90M4,SLRXF87-YEJ100M4,SLRXF87-YEJ112M4,SLRXF87-YEJ132M4,SLRXF87-YEJ160M4,SLRXF87-YEJ180M4,SLRXF87-YEJ200M4,SLRXF87-YEJ71M4,SLRXF87-YEJ80M4,SLRXF87-YEJ90M4,SLRXF87-YS100M4,SLRXF87-YS112M4,SLRXF87-YS132M4,SLRXF87-YS160M4,SLRXF87-YS180M4,SLRXF87-YS200M4,SLRXF87-YS71M4,SLRXF87-YS80M4,SLRXF87-YS90M4,SLRXF87-YVP100M4,SLRXF87-YVP112M4,SLRXF87-YVP132M4,SLRXF87-YVP160M4,SLRXF87-YVP180M4,SLRXF87-YVP200M4,SLRXF87-YVP71M4,SLRXF87-YVP80M4,SLRXF87-YVP90M4,SLRXF87-YVPEJ100M4,SLRXF87-YVPEJ112M4,SLRXF87-YVPEJ132M4,SLRXF87-YVPEJ160M4,SLRXF87-YVPEJ180M4,SLRXF87-YVPEJ200M4,SLRXF87-YVPEJ71M4,SLRXF87-YVPEJ80M4,SLRXF87-YVPEJ90M4,DSZRXF87-Y0.37KW,DSZRXF87-Y0.55KW,DSZRXF87-Y0.75KW,DSZRXF87-Y1.1KW,DSZRXF87-Y1.5KW,DSZRXF87-Y100M4,DSZRXF87-Y112M4,DSZRXF87-Y11KW,DSZRXF87-Y132M4,DSZRXF87-Y15KW,DSZRXF87-Y160M4,DSZRXF87-Y18.5KW,DSZRXF87-Y180M4,DSZRXF87-Y2.2KW,DSZRXF87-Y200M4,DSZRXF87-Y22KW,DSZRXF87-Y30KW,DSZRXF87-Y3KW,DSZRXF87-Y4KW,DSZRXF87-Y5.5KW,DSZRXF87-Y7.5KW,DSZRXF87-Y71M4,DSZRXF87-Y80M4,DSZRXF87-Y90M4,DSZRXF87-YEJ100M4,DSZRXF87-YEJ112M4,DSZRXF87-YEJ132M4,DSZRXF87-YEJ160M4,DSZRXF87-YEJ180M4,DSZRXF87-YEJ200M4,DSZRXF87-YEJ71M4,DSZRXF87-YEJ80M4,DSZRXF87-YEJ90M4,DSZRXF87-YS100M4,DSZRXF87-YS112M4,DSZRXF87-YS132M4,DSZRXF87-YS160M4,DSZRXF87-YS180M4,DSZRXF87-YS200M4,DSZRXF87-YS71M4,DSZRXF87-YS80M4,DSZRXF87-YS90M4,DSZRXF87-YVP100M4,DSZRXF87-YVP112M4,DSZRXF87-YVP132M4,DSZRXF87-YVP160M4,DSZRXF87-YVP180M4,DSZRXF87-YVP200M4,DSZRXF87-YVP71M4,DSZRXF87-YVP80M4,DSZRXF87-YVP90M4,DSZRXF87-YVPEJ100M4,DSZRXF87-YVPEJ112M4,DSZRXF87-YVPEJ132M4,DSZRXF87-YVPEJ160M4,DSZRXF87-YVPEJ180M4,DSZRXF87-YVPEJ200M4,DSZRXF87-YVPEJ71M4,DSZRXF87-YVPEJ80M4,DSZRXF87-YVPEJ90M4,BRXF87-Y0.37KW,BRXF87-Y0.55KW,BRXF87-Y0.75KW,BRXF87-Y1.1KW,BRXF87-Y1.5KW,BRXF87-Y100M4,BRXF87-Y112M4,BRXF87-Y11KW,BRXF87-Y132M4,BRXF87-Y15KW,BRXF87-Y160M4,BRXF87-Y18.5KW,BRXF87-Y180M4,BRXF87-Y2.2KW,BRXF87-Y200M4,BRXF87-Y22KW,BRXF87-Y30KW,BRXF87-Y3KW,BRXF87-Y4KW,BRXF87-Y5.5KW,BRXF87-Y7.5KW,BRXF87-Y71M4,BRXF87-Y80M4,BRXF87-Y90M4,BRXF87-YEJ100M4,BRXF87-YEJ112M4,BRXF87-YEJ132M4,BRXF87-YEJ160M4,BRXF87-YEJ180M4,BRXF87-YEJ200M4,BRXF87-YEJ71M4,BRXF87-YEJ80M4,BRXF87-YEJ90M4,BRXF87-YS100M4,BRXF87-YS112M4,BRXF87-YS132M4,BRXF87-YS160M4,BRXF87-YS180M4,BRXF87-YS200M4,BRXF87-YS71M4,BRXF87-YS80M4,BRXF87-YS90M4,BRXF87-YVP100M4,BRXF87-YVP112M4,BRXF87-YVP132M4,BRXF87-YVP160M4,BRXF87-YVP180M4,BRXF87-YVP200M4,BRXF87-YVP71M4,BRXF87-YVP80M4,BRXF87-YVP90M4,BRXF87-YVPEJ100M4,BRXF87-YVPEJ112M4,BRXF87-YVPEJ132M4,BRXF87-YVPEJ160M4,BRXF87-YVPEJ180M4,BRXF87-YVPEJ200M4,BRXF87-YVPEJ71M4,BRXF87-YVPEJ80M4,BRXF87-YVPEJ90M4,GRXF87-Y0.37KW,GRXF87-Y0.55KW,GRXF87-Y0.75KW,GRXF87-Y1.1KW,GRXF87-Y1.5KW,GRXF87-Y100M4,GRXF87-Y112M4,GRXF87-Y11KW,GRXF87-Y132M4,GRXF87-Y15KW,GRXF87-Y160M4,GRXF87-Y18.5KW,GRXF87-Y180M4,GRXF87-Y2.2KW,GRXF87-Y200M4,GRXF87-Y22KW,GRXF87-Y30KW,GRXF87-Y3KW,GRXF87-Y4KW,GRXF87-Y5.5KW,GRXF87-Y7.5KW,GRXF87-Y71M4,GRXF87-Y80M4,GRXF87-Y90M4,GRXF87-YEJ100M4,GRXF87-YEJ112M4,GRXF87-YEJ132M4,GRXF87-YEJ160M4,GRXF87-YEJ180M4,GRXF87-YEJ200M4,GRXF87-YEJ71M4,GRXF87-YEJ80M4,GRXF87-YEJ90M4,GRXF87-YS100M4,GRXF87-YS112M4,GRXF87-YS132M4,GRXF87-YS160M4,GRXF87-YS180M4,GRXF87-YS200M4,GRXF87-YS71M4,GRXF87-YS80M4,GRXF87-YS90M4,GRXF87-YVP100M4,GRXF87-YVP112M4,GRXF87-YVP132M4,GRXF87-YVP160M4,GRXF87-YVP180M4,GRXF87-YVP200M4,GRXF87-YVP71M4,GRXF87-YVP80M4,GRXF87-YVP90M4,GRXF87-YVPEJ100M4,GRXF87-YVPEJ112M4,GRXF87-YVPEJ132M4,GRXF87-YVPEJ160M4,GRXF87-YVPEJ180M4,GRXF87-YVPEJ200M4,GRXF87-YVPEJ71M4,GRXF87-YVPEJ80M4,GRXF87-YVPEJ90M4,RCXF87-Y0.37KW,RCXF87-Y0.55KW,RCXF87-Y0.75KW,RCXF87-Y1.1KW,RCXF87-Y1.5KW,RCXF87-Y100M4,RCXF87-Y112M4,RCXF87-Y11KW,RCXF87-Y132M4,RCXF87-Y15KW,RCXF87-Y160M4,RCXF87-Y18.5KW,RCXF87-Y180M4,RCXF87-Y2.2KW,RCXF87-Y200M4,RCXF87-Y22KW,RCXF87-Y30KW,RCXF87-Y3KW,RCXF87-Y4KW,RCXF87-Y5.5KW,RCXF87-Y7.5KW,RCXF87-Y71M4,RCXF87-Y80M4,RCXF87-Y90M4,RCXF87-YEJ100M4,RCXF87-YEJ112M4,RCXF87-YEJ132M4,RCXF87-YEJ160M4,RCXF87-YEJ180M4,RCXF87-YEJ200M4,RCXF87-YEJ71M4,RCXF87-YEJ80M4,RCXF87-YEJ90M4,RCXF87-YS100M4,RCXF87-YS112M4,RCXF87-YS132M4,RCXF87-YS160M4,RCXF87-YS180M4,RCXF87-YS200M4,RCXF87-YS71M4,RCXF87-YS80M4,RCXF87-YS90M4,RCXF87-YVP100M4,RCXF87-YVP112M4,RCXF87-YVP132M4,RCXF87-YVP160M4,RCXF87-YVP180M4,RCXF87-YVP200M4,RCXF87-YVP71M4,RCXF87-YVP80M4,RCXF87-YVP90M4,RCXF87-YVPEJ100M4,RCXF87-YVPEJ112M4,RCXF87-YVPEJ132M4,RCXF87-YVPEJ160M4,RCXF87-YVPEJ180M4,RCXF87-YVPEJ200M4,RCXF87-YVPEJ71M4,RCXF87-YVPEJ80M4,RCXF87-YVPEJ90M4,MTDXF87-Y0.37KW,MTDXF87-Y0.55KW,MTDXF87-Y0.75KW,MTDXF87-Y1.1KW,MTDXF87-Y1.5KW,MTDXF87-Y100M4,MTDXF87-Y112M4,MTDXF87-Y11KW,MTDXF87-Y132M4,MTDXF87-Y15KW,MTDXF87-Y160M4,MTDXF87-Y18.5KW,MTDXF87-Y180M4,MTDXF87-Y2.2KW,MTDXF87-Y200M4,MTDXF87-Y22KW,MTDXF87-Y30KW,MTDXF87-Y3KW,MTDXF87-Y4KW,MTDXF87-Y5.5KW,MTDXF87-Y7.5KW,MTDXF87-Y71M4,MTDXF87-Y80M4,MTDXF87-Y90M4,MTDXF87-YEJ100M4,MTDXF87-YEJ112M4,MTDXF87-YEJ132M4,MTDXF87-YEJ160M4,MTDXF87-YEJ180M4,MTDXF87-YEJ200M4,MTDXF87-YEJ71M4,MTDXF87-YEJ80M4,MTDXF87-YEJ90M4,MTDXF87-YS100M4,MTDXF87-YS112M4,MTDXF87-YS132M4,MTDXF87-YS160M4,MTDXF87-YS180M4,MTDXF87-YS200M4,MTDXF87-YS71M4,MTDXF87-YS80M4,MTDXF87-YS90M4,MTDXF87-YVP100M4,MTDXF87-YVP112M4,MTDXF87-YVP132M4,MTDXF87-YVP160M4,MTDXF87-YVP180M4,MTDXF87-YVP200M4,MTDXF87-YVP71M4,MTDXF87-YVP80M4,MTDXF87-YVP90M4,MTDXF87-YVPEJ100M4,MTDXF87-YVPEJ112M4,MTDXF87-YVPEJ132M4,MTDXF87-YVPEJ160M4,MTDXF87-YVPEJ180M4,MTDXF87-YVPEJ200M4,MTDXF87-YVPEJ71M4,MTDXF87-YVPEJ80M4,MTDXF87-YVPEJ90M4,WXRXF87-WSS0.37KW,WXRXF87-WSS0.55KW,WXRXF87-WSS0.75KW,WXRXF87-WSS1.1KW,WXRXF87-WSS1.5KW,WXRXF87-WSS100M4,WXRXF87-WSS112M4,WXRXF87-WSS11KW,WXRXF87-WSS132M4,WXRXF87-WSS15KW,WXRXF87-WSS160M4,WXRXF87-WSS18.5KW,WXRXF87-WSS180M4,WXRXF87-WSS2.2KW,WXRXF87-WSS200M4,WXRXF87-WSS22KW,WXRXF87-WSS30KW,WXRXF87-WSS3KW,WXRXF87-WSS4KW,WXRXF87-WSS5.5KW,WXRXF87-WSS7.5KW,WXRXF87-WSS71M4,WXRXF87-WSS80M4,WXRXF87-WSS90M4,WXRXF87-WSSB100M4,WXRXF87-WSSB112M4,WXRXF87-WSSB132M4,WXRXF87-WSSB160M4,WXRXF87-WSSB180M4,WXRXF87-WSSB200M4,WXRXF87-WSSB71M4,WXRXF87-WSSB80M4,WXRXF87-WSSB90M4,WXRXF87-WSSVP100M4,WXRXF87-WSSVP112M4,WXRXF87-WSSVP132M4,WXRXF87-WSSVP160M4,WXRXF87-WSSVP180M4,WXRXF87-WSSVP200M4,WXRXF87-WSSVP71M4,WXRXF87-WSSVP80M4,WXRXF87-WSSVP90M4,WXRXF87-WSSVPB100M4,WXRXF87-WSSVPB112M4,WXRXF87-WSSVPB132M4,WXRXF87-WSSVPB160M4,WXRXF87-WSSVPB180M4,WXRXF87-WSSVPB200M4,WXRXF87-WSSVPB71M4,WXRXF87-WSSVPB80M4,WXRXF87-WSSVPB90M4。

RXF87減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.wwindo.com/product/list-rxfxiliejiansuji-cn.html

推薦類似型號：R87減速機
