R27減速機重量：R27減速機重量5.5Kg，R27減速機配電機重量分別如下

R27減速機配0.12KW電機重量11Kg,R27減速機配0.18KW電機重量11.5Kg,R27減速機配0.25KW電機重量15.5Kg,R27減速機配0.37KW電機重量16Kg,R27減速機配0.55KW電機重量20.5Kg,R27減速機配0.75KW電機重量21.5Kg,R27減速機配1.1KW電機重量25.5Kg,R27減速機配1.5KW電機重量28.5Kg,R27減速機配2.2KW電機重量37.5Kg。

R27減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R27減速機M1安裝加0.25/0.4升，R27減速機M2安裝加0.7升，R27減速機M3安裝加0.5升，R27減速機M4安裝加0.7升，R27減速機M5安裝加0.5升，R27減速機M6安裝加0.5升。

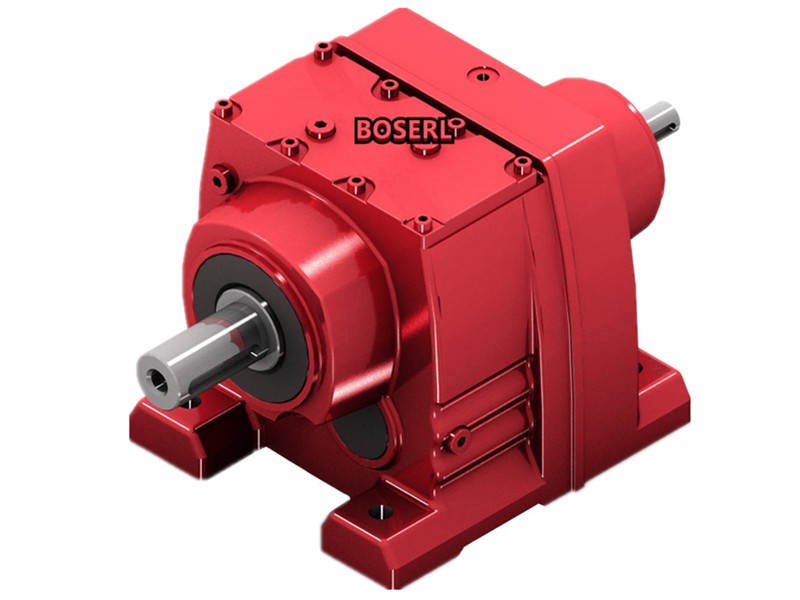

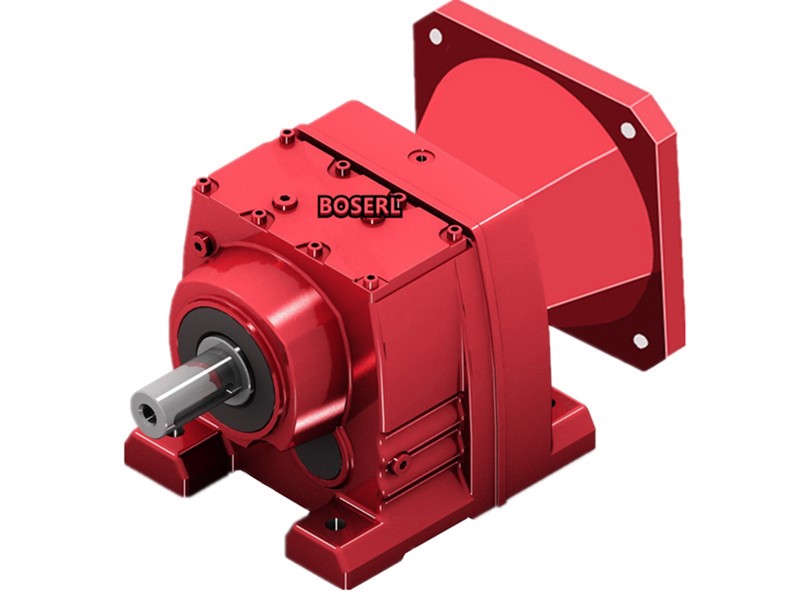

R27減速機實物圖：圖一為R27底腳安裝斜齒輪減速機，圖二RF27法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R27減速機型號表示方法：

R27減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入配置。

R27減速機型號結構R27-B2.2KW-4P-減速比-安裝方式-接線盒位置。

R27減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R27減速機結構圖：

R27減速機參數：R系列減速機

R27減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R27配0.18KW,R27配0.25KW,R27配0.37KW,R27配0.55KW,R27配0.75KW,R27配1.1KW,R27配1.5KW,R27配2.2KW,R27配3KW。

R27減速機減速比135.09比,123.91比,105.49比,90.96比,84.78比,74.11比,69.47比,61.3比,55.87比,48.17比,44.90比,39.25比,36.79比,32.47比,28.78比,24.47比,28.37比,26.09比,22.32比,19.35比,18.08比,15.63比,13.28比,11.86比,10.13比,9.41比,8.16比,7.63比,6.59比,5.6比,5比,4.27比,4比,3.37比。

R27減速機輸出轉速10轉,11轉,13轉,15轉,17轉,19轉,20轉,23轉,25轉,29轉,31轉,36轉,38轉,43轉,49轉,57轉,54轉,63轉,72轉,77轉,90轉,105轉,118轉,138轉,149轉,172轉,183轉,212轉,250轉,280轉,328轉,350轉,415轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R27減速機負載扭矩130N.m,129N.m,122N.m,116N.m,112N.m,106N.m,99N.m,95N.m,87N.m,85N.m,79N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

R27減速機尺寸圖紙：高148.5*寬149*長193（帶輸出軸）齒輪減速機

R27減速機型號:

R27AQA80,R27AQA100,R27AQA115,R27AQA140,R27AQA160,R27AQA190,R27AQH80,R27AQH100,R27AQH115,R27AQH140,R27AQH160,R27AQH190,JRTR27-Y0.12KW,JRTR27-Y0.18KW,JRTR27-Y0.25KW,JRTR27-Y0.37KW,JRTR27-Y0.55KW,JRTR27-Y0.75KW,JRTR27-Y1.1KW,JRTR27-Y1.5KW,JRTR27-Y100M4,JRTR27-Y2.2KW,JRTR27-Y3KW,JRTR27-Y63M4,JRTR27-Y71M4,JRTR27-Y80M4,JRTR27-Y90M4,JRTR27-YEJ100M4,JRTR27-YEJ63M4,JRTR27-YEJ71M4,JRTR27-YEJ80M4,JRTR27-YEJ90M4,JRTR27-YS100M4,JRTR27-YS63M4,JRTR27-YS71M4,JRTR27-YS80M4,JRTR27-YS90M4,JRTR27-YVP100M4,JRTR27-YVP63M4,JRTR27-YVP71M4,JRTR27-YVP80M4,JRTR27-YVP90M4,JRTR27-YVPEJ100M4,JRTR27-YVPEJ63M4,JRTR27-YVPEJ71M4,JRTR27-YVPEJ80M4,JRTR27-YVPEJ90M4,EWR27-Y0.12KW,EWR27-Y0.18KW,EWR27-Y0.25KW,EWR27-Y0.37KW,EWR27-Y0.55KW,EWR27-Y0.75KW,EWR27-Y1.1KW,EWR27-Y1.5KW,EWR27-Y100M4,EWR27-Y2.2KW,EWR27-Y3KW,EWR27-Y63M4,EWR27-Y71M4,EWR27-Y80M4,EWR27-Y90M4,EWR27-YEJ100M4,EWR27-YEJ63M4,EWR27-YEJ71M4,EWR27-YEJ80M4,EWR27-YEJ90M4,EWR27-YS100M4,EWR27-YS63M4,EWR27-YS71M4,EWR27-YS80M4,EWR27-YS90M4,EWR27-YVP100M4,EWR27-YVP63M4,EWR27-YVP71M4,EWR27-YVP80M4,EWR27-YVP90M4,EWR27-YVPEJ100M4,EWR27-YVPEJ63M4,EWR27-YVPEJ71M4,EWR27-YVPEJ80M4,EWR27-YVPEJ90M4,SLR27-Y0.12KW,SLR27-Y0.18KW,SLR27-Y0.25KW,SLR27-Y0.37KW,SLR27-Y0.55KW,SLR27-Y0.75KW,SLR27-Y1.1KW,SLR27-Y1.5KW,SLR27-Y100M4,SLR27-Y2.2KW,SLR27-Y3KW,SLR27-Y63M4,SLR27-Y71M4,SLR27-Y80M4,SLR27-Y90M4,SLR27-YEJ100M4,SLR27-YEJ63M4,SLR27-YEJ71M4,SLR27-YEJ80M4,SLR27-YEJ90M4,SLR27-YS100M4,SLR27-YS63M4,SLR27-YS71M4,SLR27-YS80M4,SLR27-YS90M4,SLR27-YVP100M4,SLR27-YVP63M4,SLR27-YVP71M4,SLR27-YVP80M4,SLR27-YVP90M4,SLR27-YVPEJ100M4,SLR27-YVPEJ63M4,SLR27-YVPEJ71M4,SLR27-YVPEJ80M4,SLR27-YVPEJ90M4,DSZR27-Y0.12KW,DSZR27-Y0.18KW,DSZR27-Y0.25KW,DSZR27-Y0.37KW,DSZR27-Y0.55KW,DSZR27-Y0.75KW,DSZR27-Y1.1KW,DSZR27-Y1.5KW,DSZR27-Y100M4,DSZR27-Y2.2KW,DSZR27-Y3KW,DSZR27-Y63M4,DSZR27-Y71M4,DSZR27-Y80M4,DSZR27-Y90M4,DSZR27-YEJ100M4,DSZR27-YEJ63M4,DSZR27-YEJ71M4,DSZR27-YEJ80M4,DSZR27-YEJ90M4,DSZR27-YS100M4,DSZR27-YS63M4,DSZR27-YS71M4,DSZR27-YS80M4,DSZR27-YS90M4,DSZR27-YVP100M4,DSZR27-YVP63M4,DSZR27-YVP71M4,DSZR27-YVP80M4,DSZR27-YVP90M4,DSZR27-YVPEJ100M4,DSZR27-YVPEJ63M4,DSZR27-YVPEJ71M4,DSZR27-YVPEJ80M4,DSZR27-YVPEJ90M4,BR27-Y0.12KW,BR27-Y0.18KW,BR27-Y0.25KW,BR27-Y0.37KW,BR27-Y0.55KW,BR27-Y0.75KW,BR27-Y1.1KW,BR27-Y1.5KW,BR27-Y100M4,BR27-Y2.2KW,BR27-Y3KW,BR27-Y63M4,BR27-Y71M4,BR27-Y80M4,BR27-Y90M4,BR27-YEJ100M4,BR27-YEJ63M4,BR27-YEJ71M4,BR27-YEJ80M4,BR27-YEJ90M4,BR27-YS100M4,BR27-YS63M4,BR27-YS71M4,BR27-YS80M4,BR27-YS90M4,BR27-YVP100M4,BR27-YVP63M4,BR27-YVP71M4,BR27-YVP80M4,BR27-YVP90M4,BR27-YVPEJ100M4,BR27-YVPEJ63M4,BR27-YVPEJ71M4,BR27-YVPEJ80M4,BR27-YVPEJ90M4,GR27-Y0.12KW,GR27-Y0.18KW,GR27-Y0.25KW,GR27-Y0.37KW,GR27-Y0.55KW,GR27-Y0.75KW,GR27-Y1.1KW,GR27-Y1.5KW,GR27-Y100M4,GR27-Y2.2KW,GR27-Y3KW,GR27-Y63M4,GR27-Y71M4,GR27-Y80M4,GR27-Y90M4,GR27-YEJ100M4,GR27-YEJ63M4,GR27-YEJ71M4,GR27-YEJ80M4,GR27-YEJ90M4,GR27-YS100M4,GR27-YS63M4,GR27-YS71M4,GR27-YS80M4,GR27-YS90M4,GR27-YVP100M4,GR27-YVP63M4,GR27-YVP71M4,GR27-YVP80M4,GR27-YVP90M4,GR27-YVPEJ100M4,GR27-YVPEJ63M4,GR27-YVPEJ71M4,GR27-YVPEJ80M4,GR27-YVPEJ90M4,RC27-Y0.12KW,RC27-Y0.18KW,RC27-Y0.25KW,RC27-Y0.37KW,RC27-Y0.55KW,RC27-Y0.75KW,RC27-Y1.1KW,RC27-Y1.5KW,RC27-Y100M4,RC27-Y2.2KW,RC27-Y3KW,RC27-Y63M4,RC27-Y71M4,RC27-Y80M4,RC27-Y90M4,RC27-YEJ100M4,RC27-YEJ63M4,RC27-YEJ71M4,RC27-YEJ80M4,RC27-YEJ90M4,RC27-YS100M4,RC27-YS63M4,RC27-YS71M4,RC27-YS80M4,RC27-YS90M4,RC27-YVP100M4,RC27-YVP63M4,RC27-YVP71M4,RC27-YVP80M4,RC27-YVP90M4,RC27-YVPEJ100M4,RC27-YVPEJ63M4,RC27-YVPEJ71M4,RC27-YVPEJ80M4,RC27-YVPEJ90M4,MTD27-Y0.12KW,MTD27-Y0.18KW,MTD27-Y0.25KW,MTD27-Y0.37KW,MTD27-Y0.55KW,MTD27-Y0.75KW,MTD27-Y1.1KW,MTD27-Y1.5KW,MTD27-Y100M4,MTD27-Y2.2KW,MTD27-Y3KW,MTD27-Y63M4,MTD27-Y71M4,MTD27-Y80M4,MTD27-Y90M4,MTD27-YEJ100M4,MTD27-YEJ63M4,MTD27-YEJ71M4,MTD27-YEJ80M4,MTD27-YEJ90M4,MTD27-YS100M4,MTD27-YS63M4,MTD27-YS71M4,MTD27-YS80M4,MTD27-YS90M4,MTD27-YVP100M4,MTD27-YVP63M4,MTD27-YVP71M4,MTD27-YVP80M4,MTD27-YVP90M4,MTD27-YVPEJ100M4,MTD27-YVPEJ63M4,MTD27-YVPEJ71M4,MTD27-YVPEJ80M4,MTD27-YVPEJ90M4,WXR27-WSS0.12KW,WXR27-WSS0.18KW,WXR27-WSS0.25KW,WXR27-WSS0.37KW,WXR27-WSS0.55KW,WXR27-WSS0.75KW,WXR27-WSS1.1KW,WXR27-WSS1.5KW,WXR27-WSS100M4,WXR27-WSS2.2KW,WXR27-WSS3KW,WXR27-WSS63M4,WXR27-WSS71M4,WXR27-WSS80M4,WXR27-WSS90M4,WXR27-WSSB100M4,WXR27-WSSB63M4,WXR27-WSSB71M4,WXR27-WSSB80M4,WXR27-WSSB90M4,WXR27-WSSVP100M4,WXR27-WSSVP63M4,WXR27-WSSVP71M4,WXR27-WSSVP80M4,WXR27-WSSVP90M4,WXR27-WSSVPB100M4,WXR27-WSSVPB63M4,WXR27-WSSVPB71M4,WXR27-WSSVPB80M4,WXR27-WSSVPB90M4。同軸減速機
